About Auxbeam Switch Panel Installation Video

AS-400: https://auxbeam.com//AS-400VIDEO
AS-600: https://auxbeam.com//AS-600VIDEO
AS-R40: https://auxbeam.com//AS-R40VIDEO
AS-R60: https://auxbeam.com//AS-R60VIDEO

★ Upgraded Functions:
✔ RGB Backlight - Unlimited color options match dash lighting and vehicle
✔ 3 Mode Setting - Toggle/Momentary/Pulsed
✔ Bluetooth APP Control - Access to accessories no matter whether you are in the vehicle
✔ Upgraded Wireless Remote Control - Equipped with a strong magnet, allowing it to be easily adsorbed onto iron metal surfaces, making it very convenient to use. Includes two button batteries for easy replacement, with an IP65 waterproof rating
✔ Manual Backlit Off - Turn off the backlight when it's daytime or when it's not necessary
✔ Group Setting - Set up a group via APP to control 2 or more lights at the same time
✔ DIY Switch Panel & Remote Control - Use the provied 60pcs labels to indicate what's connected to that switch& remote control

Features:

▶AS Series RGB Switch Panel

4/6-Gang one-sided outlet switch panel. It allows you to control up to 4/6 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
3 control methods - Switch panel & Bluetooth APP&Remote Control, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.The wireless remote control has a connection range of up to 165ft/50m.
3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.

● RED-Toggle, Constant light mode (Great for things like fog lights or driving).

● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.

● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

RGB backlight color. Adjust backlight color and brightness to match your vehicle.
Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
DIY button icon on APP. 200 default icons or use your own photos from the phone album.
Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

▶Upgraded Wireless Remote Control

Advanced thermal protection and overload protection design makes the load work safely.
The back of the product has a magnetic backplate, which can be easily hung on any metal and can be placed and picked up at any time.
Ultra-low latency, 433 signal frequency, no other equipment interference control to block the signal
The wireless remote control has a connection range of up to 200 feet.
Replaceable battery

▶3.94FT Extension Cable

There is a 4-pin aviation video cable, a cable for transmitting video and power.
It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
Power input DC 12V - DC 24V.
Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.

▶20FT Extension Cable

Auxbeam Extension Cable. This 20-feet, 4-pin wiring harness extension features a Play and Plug design, allowing for effortless installation of extension wires. With ample length, it provides sufficient reach to extend your wiring harness to the desired location for installation of the controller box
Premium Made. Auxbeam switch panel extension boasts an especially thick hard wire, which not only enhances its strength and longevity, but also provides superior protection against EMI and RF interference, including automotive circuit interference
Wide Application. The Auxbeam cable extension has a broad range of applications and can be utilized to extend control over any vehicle electrical appliance for your modification needs. This includes, but is not limited to UTVs, trucks, trailers, buses, motorhomes, and long-distance parking aid sectors
No Splicing. This extender eliminates the need for splicing of new wires, as it allows for easy extension of existing wires. It is compatible with power input ranging from DC 12V to DC 24V, and features a professional CCTV/monitor 4-pin connector that can be used to connect a rearview camera, DVD player, TV box, or other similar devices

▶7FT Electric Wire

10㎡/7AWG red and black large wire with 6M and 8M tinned copper wire lugs.
Copper cable lugs are made of solid copper with tin plated caps for corrosion protection.
The package comes with red and black cables with each cable end sealed with heat shrink tubing for heat insulation.

Package Included:

1 Set of 4/6 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
Installation Instructions

SWITCH PANEL-BY SERIES

AS Series 4/6/8 Gang RGB Slim Switch Panel with APP&Remote Control, Toggle/ Momentary/ Pulsed Mode Supported(One-Sided Outlet)

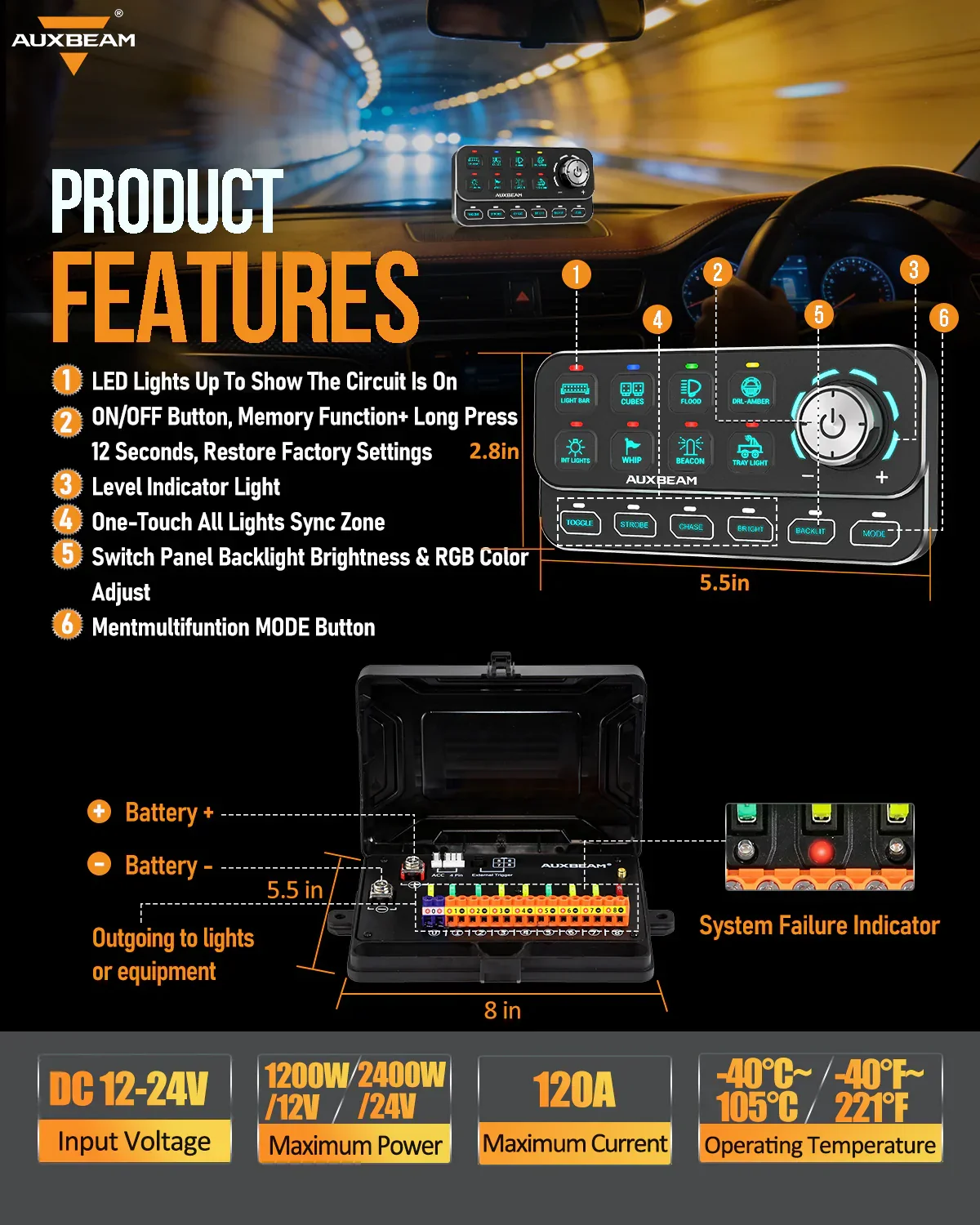

🆕KS-80 Knob RGB Switch Panel MAX 120A ,Light Dimming, Dynamic Chase, Four External Triggers, 4 Modes

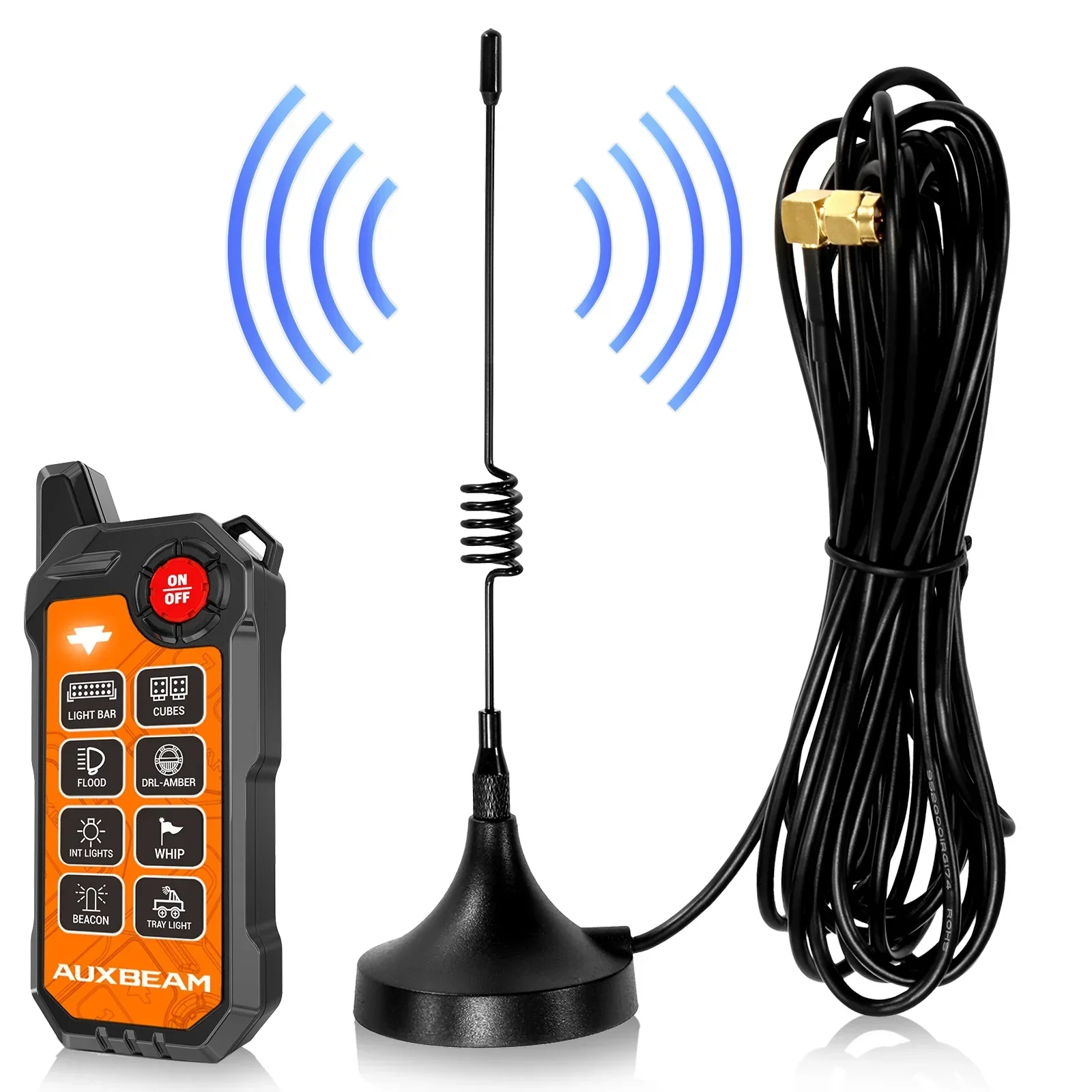

8 Gang Wireless Remote Control Only for KS-80 Knob Switch Panel
